Level , Flow계기류



그림에 마우스를 올리시면 해당 제품에 대한 상세한 정보를 보실 수 있습니다.

LEVEL TRANSMITTER

모델명

입력

출력

전원

비 고

Eclipse 706

706
사양서(PDF)

Level
(Liquid, Solid, Interface)

4-20mA
(FF)
(HART)

24Vdc, Loop Power

SIL2 Compliant, Intrinsic Safety

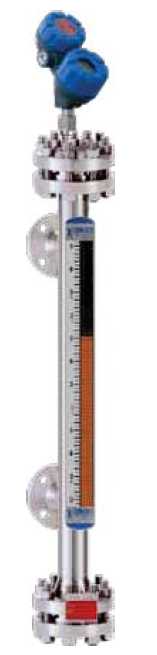

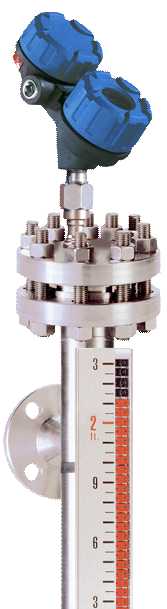

AURORA

AURORA
사양서(PDF)

Level
(Liquid,  Interface)

Magnetic Level Indication
&
4-20mA
(FF)
(HART)

Local Level Indication
&
24Vdc, Loop Power
Transmitter

ANSI / EN 1092 process connection available
ASME B31.1, B31.3, or NACE available

SIL2 Compliant, Intrinsic Safety


E3 Modulevel

E3 Modulevel
사양서(PDF)

Level
(Liquid, Slurry, Hydrocarbon)

4-20mA
(FF)
(HART)

24Vdc, Loop Power

SIL2 Compliant, Intrinsic Safety

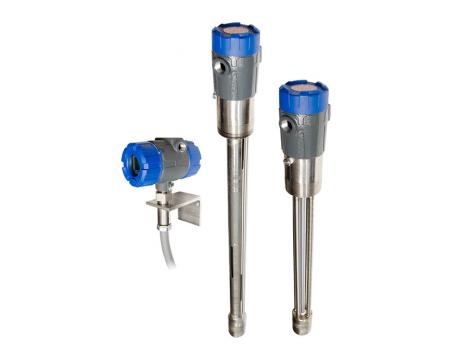

Orion Jupitor Magnetostrictive Level Transmitter

Magneto-
strictive

사양서(PDF)

Level
(Liquid,
Interface)

4-20mA
(FF)
(HART)

24Vdc, Loop Power

SIL2 Compliant, Intrinsic Safety

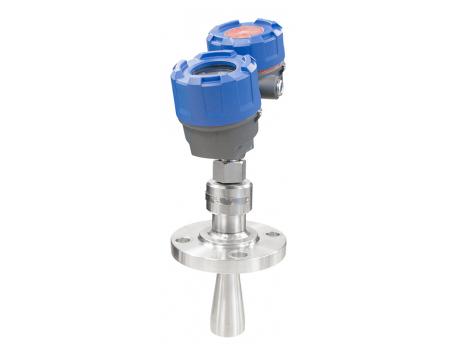

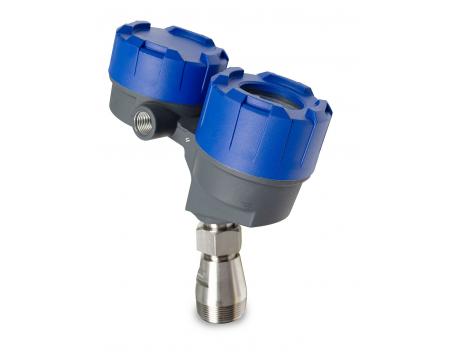

Rx5 Pulse burst Radar

Pulse Bust Radar
사양서(PDF)

Level
(Liquid,
Slurries)

4-20mA
(HART)

24Vdc, Loop Power

SIL1 Compliant, Intrinsic Safety



T2x Level Switch

T2x Level
Switch

사양서(PDF)

Level
(Liquid,
Interface)

Contact
Hermetically
Sealed
Pneumatic

N/A

Intrinsic Safety





LEVEL  GAUGE

모델명

입력

출력

전원

비 고

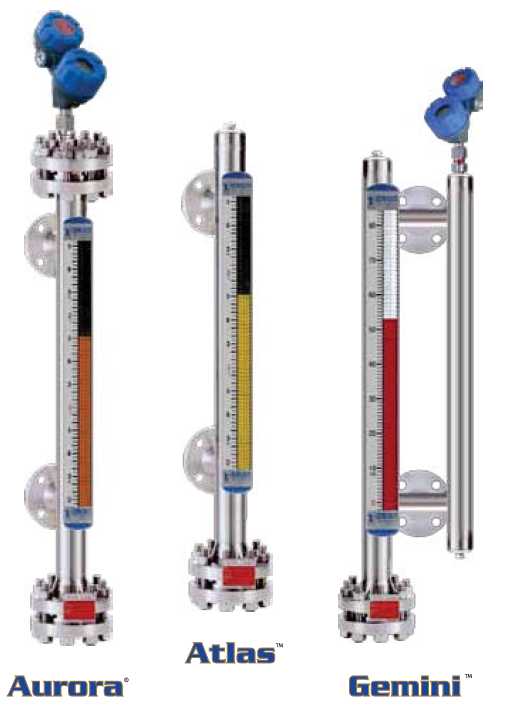

Orion MLI - Magnetic Level Indicator

MLI
사양서(PDF)

Level

Flag or Shuttle type Level Indication

4-20mA
(FF)
(HART)

24Vdc, Loop Power

ANSI / EN 1092 process connection available
ASME B31.1, B31.3, or NACE available

SIL2 Compliant, Intrinsic Safety




FLOW ( Solid )

모델명

입력

출력

전원

비 고

Solid Flow Detector

FLOW NO FLOW
사양서(PDF)

Solid
FLOW

Relay Output
30Vac/dc
0.1 to 3A

17~30Vdc

IP66, stainless steel / aluminum (according to models)

Ex- version ATEX

Solid Dynamic Flow measurement

DYNAMIC FLOW
사양서(PDF)

Solid
FLOW

4-20mA,
pulse

Modbus
(option)

24Vdc

IP66, stainless steel / aluminum (according to models)
Ex- version ATEX


Solid Dynamic Flow measurement

DYNAMIC FLOW
COAL

사양서(PDF)

Solid
FLOW

4-20mA,

Modbus,
Profibus,
Profinet
(option)

24Vdc

Online Pulverized Coal Mass flow Measurement.
- Optimizing combustion
- Reducing Nox Emission
 - Improvingt boiler efficiency
- Reducing coal consumption
