TEST BENCH

Power Supply

기  타 ( Test Bench )

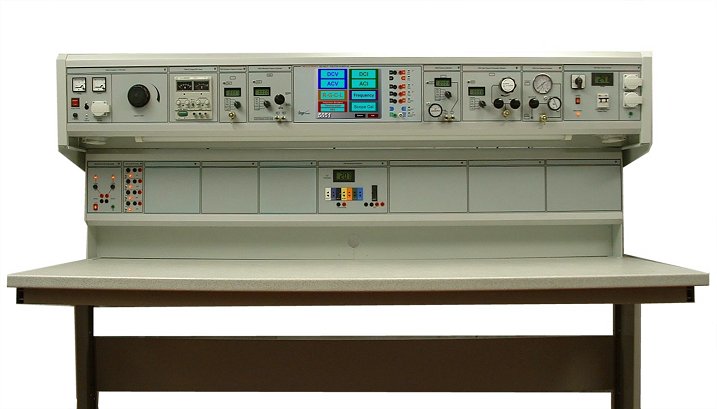

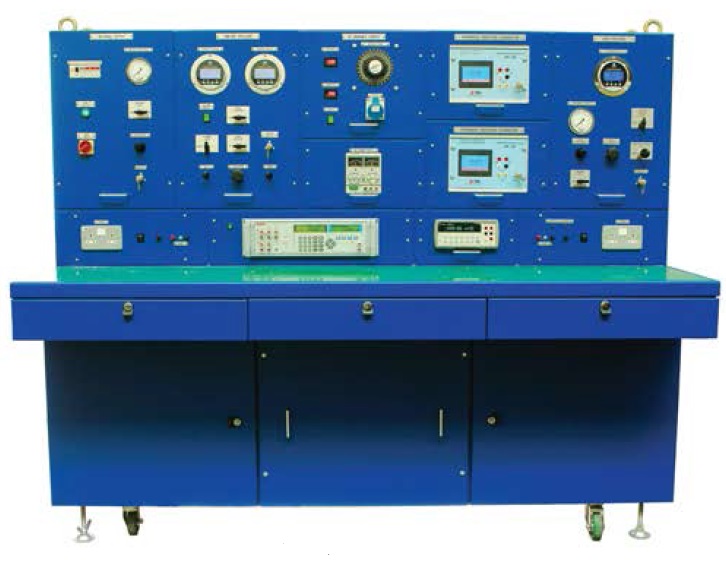

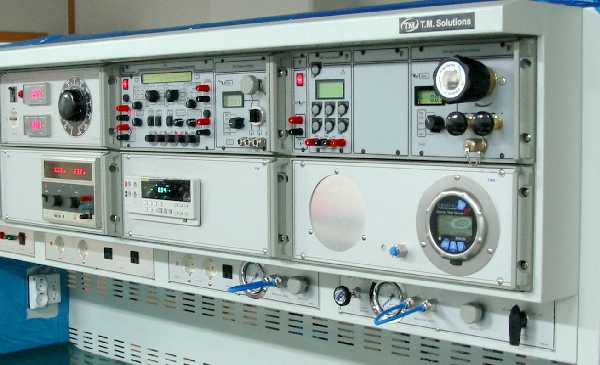

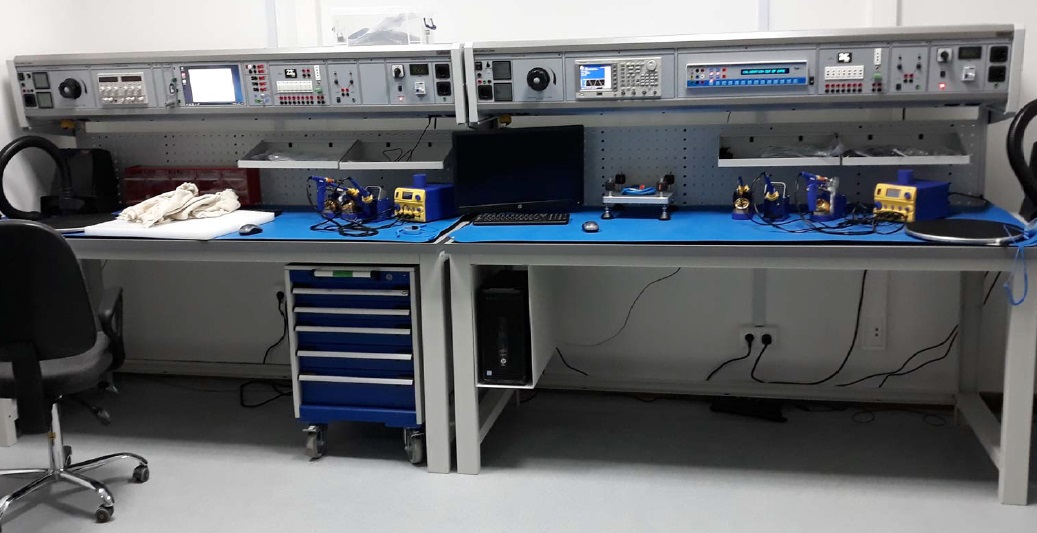

Process Industry Calibration Bench

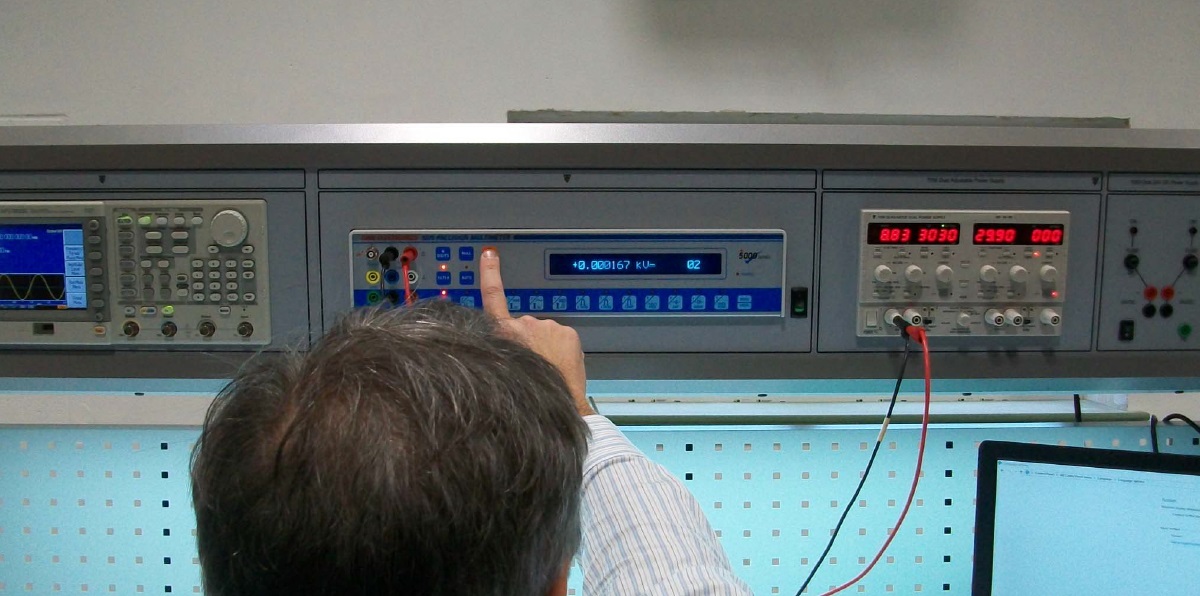

Test Bench




Test Bench




 Test Bench Module

모델

모델명

TYPE

입력

출력(Option)

정확도

기능

7082

7082

Main Power Control

  220Vac

 220Vac



Main Power Control

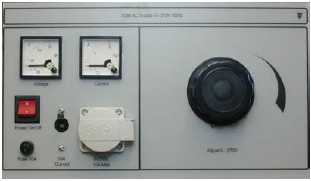

7088

7088

Power Module

 220Vac

0 ~ 270Vac,
0~30Vdc, 60Vdc

6Vdc,12Vdc,
24Vdc,48Vdc

N/A

 압력레귤레이터
압력셀렉터S/W

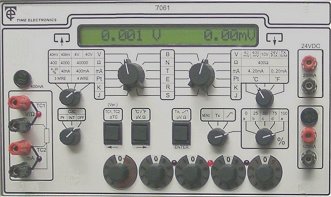

 7061(RM5)

Multifunction

V, mA,옴,T/C, RTD

V, mA,옴,T/C, RTD

0.03% FS

RAMP, %
Square Root
RS232C (Opt)

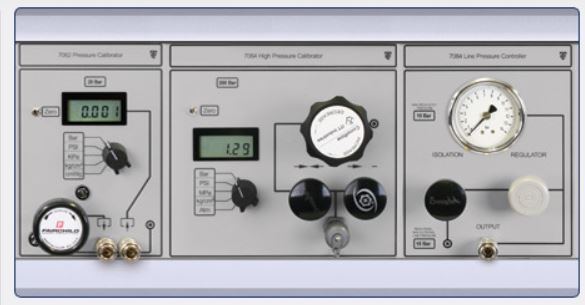

pressure module overview



Overview

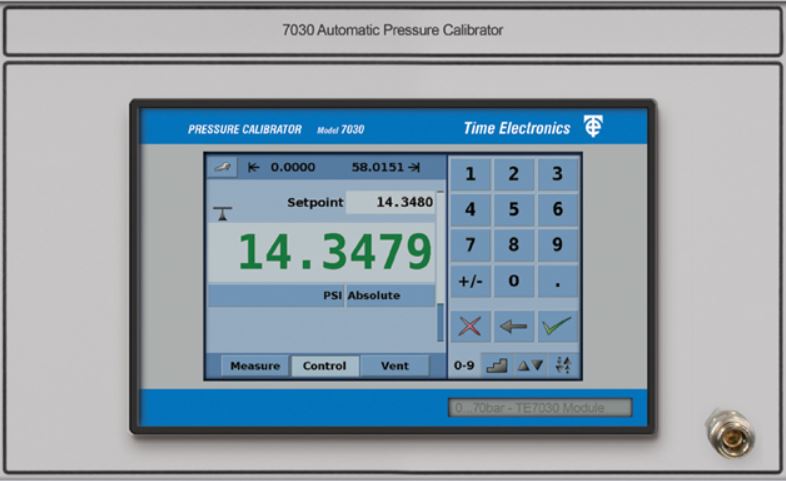

7030B automated pressure controller

7030B

Auto Pressure Calibrator Module

-1 ~ 100 Bar

0 ~ 100% of selected model

0.003% range

automated pressure controller

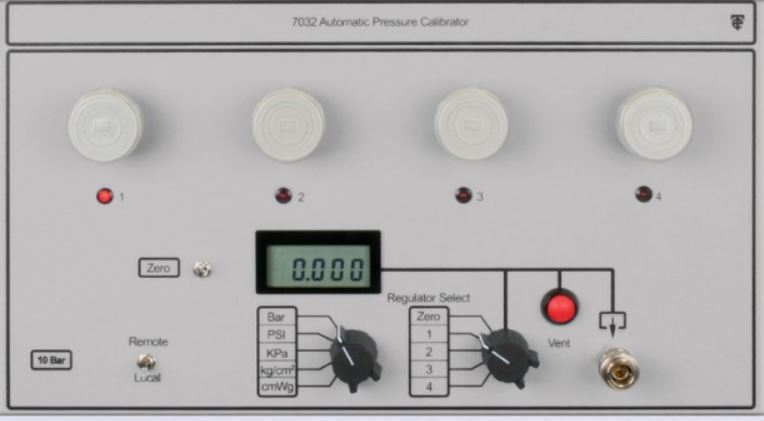

7032

7032

Semi auto pressure module

 2 Bar ~ 10 Bar

 2 Bar ~ 10 Bar

 0.04% FS

 preset 5 point calibration

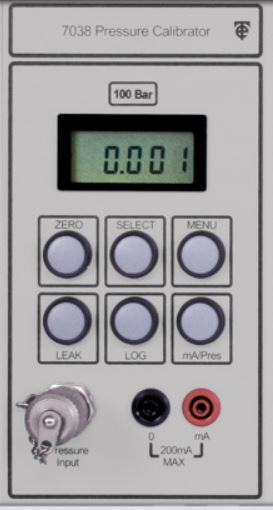

7038

7038

Multifunction Pressure Indicator module

 Vacuum ~ 600 Bar

 N/A

 0.04% FS

 Loop current measure

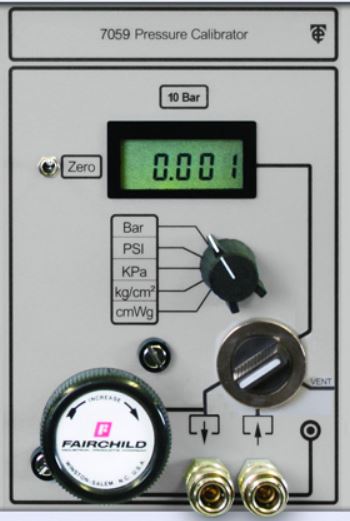

7059

7059

Vacuum & Pressure Calibrator module

 Vacuum ~ 10 Bar

 Vacuum ~ 10 Bar

  0.04% FS

 pneumatic with regulator, 5 selectable units

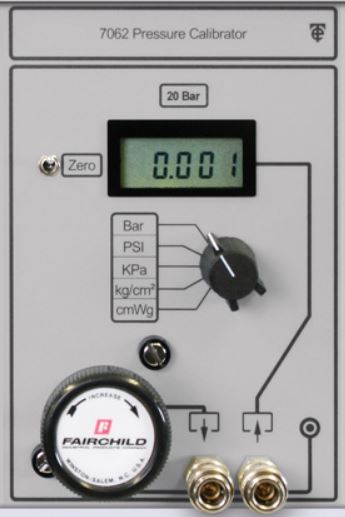

7062

7062

Pressure Calibrator module

 Vacuum ~ 20 Bar

 Vacuum ~ 20 Bar

 0.04% FS

  pneumatic with regulator, 5 selectable units

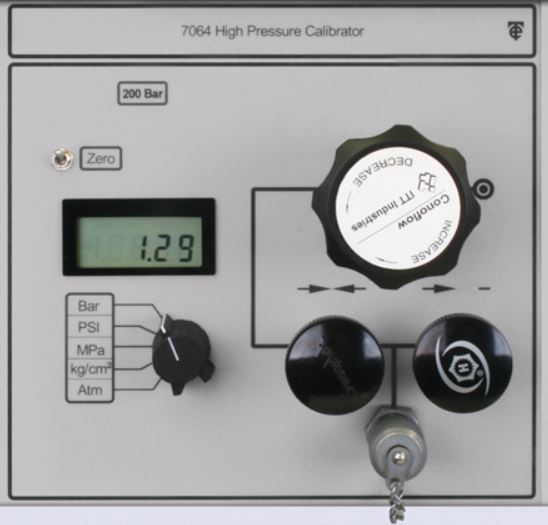

7064

7064

High Pressure Calibrator module

35 ~ 200 Bar

35 ~ 200 Bar

  0.04% FS

  pneumatic with regulator, 5 selectable units

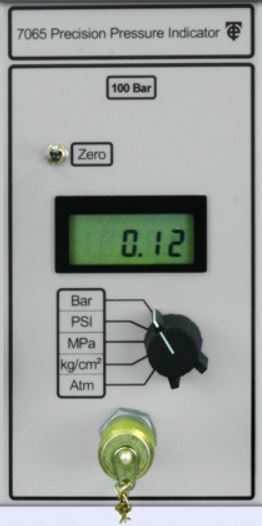

7065

 7065

Pressure Indicator module

Vacuum ~ 600 Bar

N/A

0.04% FS

 Pressure Indicator

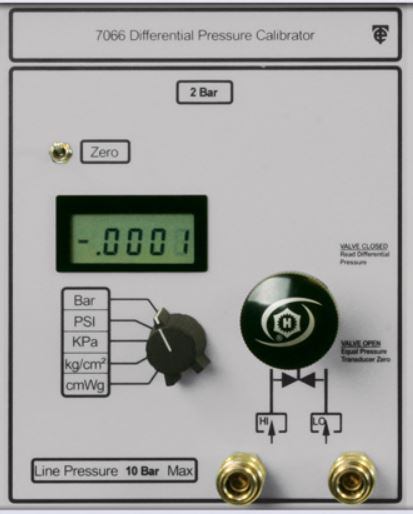

7066

7066

Differential
Pressure Calibrator module

200 mBar ~ 10 Bar

N/A

0.04% FS

Differential Pressure

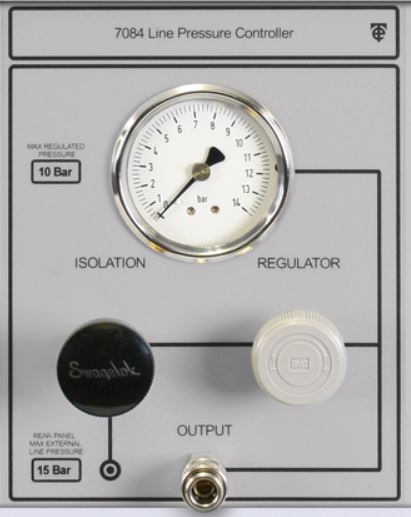

7084

7084

Line pressure controller module

5/10/20/35
70/100/200 Bar

N/A

N/A

63mm anti-shock analogue gauge

7067

 7067(RM8)

mA Loop Calibrator

mA

mA

0.05% Rdg

RAMP, %
Square Root
Loop Power

 7068

7068(RM9)

RTD

RTD
(2,3,4 wire)

RTD
2000 ohm

0.05 ℃
Resolution : 0.01℃

℃, ℉, °K

 7067

7069(RM6)

mA Loop, Volt Calibrator

0-70mA
0-50V

0-22mA,
0-22V

0.05% Span

RAMP, Step



Instrument Power Supply

모델

모델명

정류

입력

출력

 주변 온도

2400

2400

±0.1%

115VAC,
230VAC

24VDC

 -20~70도씨

MEC24 -1000

MEC24 -1000

±0.2%

120VAC,
220VAC

24VDC ±5%

-20~60도씨
