HART
Interface

MODBUS Conveter

Industrial Ethernet Switch

Network Communication Converter

그림에 마우스를 올리시면 해당 제품에 대한 상세한 정보를 보실 수 있습니다.

HART Alarm Monitor Switch
모델명	모델명	입력	출력(Option)	전원	접점	비고
	SPA(hart) 사양서(PDF)	HART	4-20mA or 0-10VDC	22-300Vdc 90-260Vac	1~ 4접점	전송선에 병열연결 HART variable 이용 알람기능
	HFA 사양서(PDF)	HART	-	18-30Vdc	1접점	HART 계기 상태확인 및 Alarm

HART Interface
모델	모델명	통신	입력	출력	전원	비고
	MTL4840 사양서(PDF)	HART	A/I, A/O	RS232C RS485	24Vdc
	HIM 사양서(PDF) HART Monitoring Devices	RS485 (MODBUS)	HART	4-20mA 0-20mA Modbus	24Vdc	전송선에 병열연결 HART variable 이용 알람(2ea) 및 AO(3ea)기능
	TCS MUX 사양서(PDF)	HART RS485 (MODBUS)	T/C, RTD, mV, ohm	HART Modbus	12 ~30 Vdc	Mux Low Level Input Zone1

Modbus Convertor
모델	모델명	입 력	출 력	전 압	비 고
	TMZ 사양서(PDF)	0-20mA, 4-20mA, 0-50mA, 0-5Vdc, 1-5Vdc, 0-10Vdc T/C (JKTERSBNC), RTD, mV, Ohm	MODBUS, Highspeed RS-485 (max.38.4k)	24Vdc	1ch input

Advanced Industrial Etherent Switch
모델	모델명	압력범위
	EL326 Layer 3 사양서(PDF)	Industrial-grade Layer 3 hardware functionality increases multi-service network performance 10Mb/s to 10Gb/s Ethernet provides flexible deployment options IPv4 and IPv6 management delivers infrastructure sustainability Enterprise-class functionality and advanced security future proofs the network Stackable design provides high scalability and investment protection
	EL228 Layer 2 사양서(PDF)	KEMA tested and approved for IEC 61850 and IEEE 1613 Enterprise-class functionality and security future proofs the network Powerful management and monitoring simplifies deployment and provides fault isolation Extreme port flexibility allows seamless field configuration and upgrade Up to 26 fiber optic ports for the ultimate in noise immunity Universal Mounting (patent pending) simplifies ordering and deployment
	EL212F Layer 2 사양서(PDF)	IEC 61850/IEEE 1613 compliance ensures applications stay running in the toughest environments Enterprise-class functionality and security future proofs the network Powerful management and monitoring simplifies deployment and provides fault isolation Extreme port flexibility allows for seamless field configuration and upgrade Up to 12 fiber optic ports offer the ultimate in noise immunity DIN-rail or direct panel mounting simplifies installation

Standard Industrial Ethernet Switch
모델	모델명

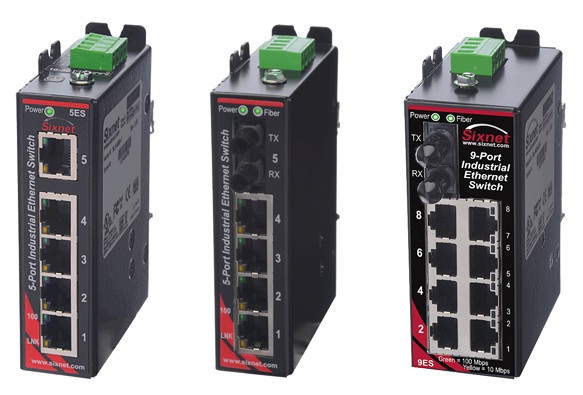

	SLX 사양서(PDF)	Up to 9 fast Ethernet (10/100) ports Up to 3 fiber optic ports for noise-immune links up to 120 km High performance and value Hardened design for medium or heavier industrial networking applications Slim packaging fits on your DIN-rail Dual power inputs keeps you running Plug and play saves you time and money
	EB-5ES 사양서(PDF)	Slim 5 port DIN-rail packaging 4 PoE sourcing ports with full IEEE compliance Pre-configured for plug-and-play simplicity Industrial-hardened design
	SLX-6RS 사양서(PDF)	6 fast Ethernet (10/100) ports including up to 2 fiber (100Mb) ports Fast, fault-tolerant network redundancy Pre-configured for plug-and-play simplicity Industrial-hardened design Compact case for DIN-rail or direct-panel mounting
	SLX-5/8MS 사양서(PDF)	5 or 8 fast Ethernet (10/100) ports including up to 4 fiber (100Mb) ports Managed with advanced features and security Slim 5 or 8 port DIN-rail packaging High performance and value Industrial-hardened design
	SLX-5MS-MDM 사양서(PDF)	Slim 5 port DIN-rail packaging Secure dial-in and dial-out connections up to 56 Kbps using point-to-point protocol (PPP) Easy-to-configure management and modem functions including PPP, SNMP, VLAN, QoS, IGMP and more Rugged design supports -40 to 75° C operation

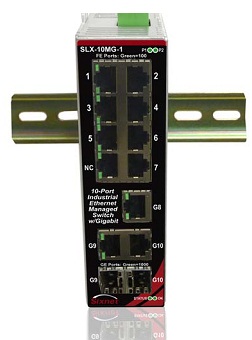

	SLX-10MG 사양서(PDF)	10 ports including 7 fast Ethernet 10/100 RJ45 ports 1 Gigabit Ethernet 10/100/1000 RJ45 port 2 Gigabit combo ports for copper or fiber High port count in a small footprint Truly rugged design with -40 to 75°C operation Easy to configure management functions
	SLX-16MS 사양서(PDF)	16 ports of fast 10/100 Ethernet High port count in a small footprint Truly rugged design with -40 to 75°C operation Easy to configure management functions
	SLX-18MG 사양서(PDF)	18 ports 16 fast Ethernet 10/100 RJ45 ports 2 Gigabit combo ports for copper or fiber High port count in a small footprint Truly rugged design with -40 to 75°C operation Easy to configure management functions
	EK26/EF26 사양서(PDF)	Up to 26 ports total Up to 8 Gigabit ports for 10/100/1000 RJ45 (4 of these also support 100 and 1000 Mb fiber) Space efficient 1U rack mount metal enclosure available with sealed IP50 protection Easy to configure management functions including SNMP, VLAN, QoS, IGMP, MSTP and much more Fast and flexible redundancy with RSTP or Real-Time Ring™ Rugged design with -40 to 85°C operation Ideal for the tough industrial networking applications
	EK32/EF32 사양서(PDF)	Up to 32 ports total Up to 6 Gigabit ports for 10/100/1000 RJ45 (4 of these also support 100 and 1000 Mb fiber) Space efficient 1U rack mount metal enclosure available with sealed IP50 protection Easy to configure management functions including SNMP, VLAN, QoS, IGMP, MSTP and much more Fast and flexible redundancy with RSTP or Real-Time Ring™ Truly rugged design with -40 to 85°C operation Ideal for the tough industrial applications

ACCESSRIES
모델	모델명
	Power over Ethernet (PoE) Splitter 사양서(PDF)	One IEEE 802.3af compliant Power over Ethernet (PoE) port One Ethernet output port where the 48 VDC has been removed Plug and play saves you time and money Industrial rated for any application
	Power over Ethernet (PoE) Injectors 사양서(PDF)	Fully IEEE 802.3af compliant PSE (Power Sourcing Equipment) operation Model 1 directly runs off of your existing 24 VDC and powers 1 PoE (48 VDC) port Model 2 saves you space and money by powering 2 PoE (48 VDC) ports Plug and play saves you time and money Industrial rated for any application
	IP67 Water & Corrosion-Proof 사양서(PDF)	IP67 (NEMA 6) rated to protect against fluids (water, oil, etc.) and dust Shock, vibration and traction (pulling) resistant – MILITARY TOUGH! Strain relief prevents cable breaks Circular reverse-bayonet (1/4-turn) for the quickest and easiest latching Field-installable plugs – No tools required! Fits over standard Ethernet cables Truly industrial rated for any application
	Power Supply EB-PS-AC48-75 (75 Watts) EB-PS-AC48-120 (120 Watts) EB-PS-4824-13 사양서(PDF) ET-PS-024-02 (48 Watts) ST-PS-024-05 (120 Watts) 사양서(PDF)	Fully protected from short circuit, over-load, over-voltage and over-temperature conditions DIN-rail mounting standard Wide-operating temperature range Certified to perform
	Dual Port Fast Ethernet Protector 사양서(PDF)	10/100BaseT(x) Ethernet Surge & Lightning Protector Advanced 3 stage hybrid protection Dual port – protects two Ethernet devices Save money on repair and replacement Modular and compact design DIN-rail or direct-panel mounting Protective grounding to DIN-rail UL and CE rated for industrial use Compatible with Sixnet’s Industrial Ethernet Switches
	CAT5E Ethernet Cabling 사양서(PDF)
	Military Tactical CAT6 Ethernet Cabling 사양서(PDF)

Copyright(c) 2001-2011 TM Solutions inc. All rights reserved

티엠솔루션(주) / 서울시 금천구 가산동 426-5 (월드메르디앙벤처센타2 빌딩717호) / Tel:(02)784-2526 / Fax:(02)784-2547

사 양
입력	HART
출력	SPDT 릴레이, 1 form C, 5A @250V non-inductive (최대 4접점까지) OPTION : DPDT 2 form C, 5A @250V AO : 4 - 20mA, 0-10VDC
정확도	Field HART 계기 오차에 따름 AO option 경우 출력 : ±0.03%
Isolation	1000Vrms Case-Input-Output
표시 화면	2x4 Character LCD Dual Color LED Alarm Lamp
주변온도	-25~65도씨
크기	10.75 x 4.5 x 2.175"
무게	500 그램

사 양
입력	HART
출력	SPDT 릴레이, 1 form C, 5A @250V
정확도	HART 현장계기에 준함
Isolation	1000Vrms Case-Input-Output
전원	18-30VDC
크기	35 x 100 x 136cm (WHD)
무게	337 그램

사 양
입력	HART
출력	AO : 4 - 20mA, 0-20mA 또는 MODBUS 2접점 : SPDT 릴레이, 1 form C, 5A @250V non-inductive 1접점 : DPDT 2 form C, 5A @250V
정확도	Field HART 계기 오차에 따름 AO 출력 : ±0.015%Span
Isolation	500Vrms Channel-to-Channel 1000Vrms Case-Input-Output
표시 화면	2Line LCD, 5 Alphanumeric display LED Lamp
주변온도	-25~70도씨
크기	65 x 100 x 138mm
무게	567 그램

사 양
입력	T/C (types J, K, T, R, S, E, C, B, N), -50 mV~1V Pt RTD100, 200,300,400,500, 1000 , 0-4k Ohm, Ni120, Cu10 0-20mA, 4-20mA, 10-50mA 0-5V, 1-5V, 0-10V
출력	RS485, MODBUS RTU
Ambinet Temp. Comp.	Coldjunction compensation
Isolation	1000V, Input/Case
정확도	0.45 도씨 (CJC), 0.18도씨 RTD
주변온도	-40 ~ 85 도씨
Power Supply	24Vdc
